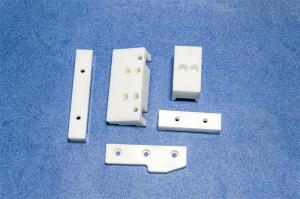

Alumina Ceramic Components With Dielectric Constant 9.6 & Breakdown Voltage 20 KV/Mm
Product Description:
Alumina Ceramic Components are made of high-grade alumina ceramic, which is an advanced engineering material with excellent performance. It has a high hardness of 9.0 Mohs, low thermal expansion of 7.2 x 10-6/K, and a thermal conductivity of 20-30 W/m.K. Alumina Ceramic Components is a highly reliable and cost-effective material used in a variety of applications such as electrical, electronic, automotive, and medical. It is a very durable material and is resistant to corrosion, abrasion, and high temperatures. It is also non-toxic and fire-resistant. Alumina Ceramic Components is easy to fabricate and can be machined to any desired shape and size. In addition, it has good electrical insulation and is extremely resistant to wear and tear. Alumina Ceramic Components is a preferred choice for many applications due to its high strength, superior thermal properties, and resistance to chemicals.
Features:
- Product Name: Alumina Ceramic Components
- Flexural Strength: 200-400 MPa
- Dielectric Strength: 20 KV/mm
- Shape: Components
- Alumina Ceramic Pad
- Alumina Ceramic Ring
- Alumina Ceramic Case
- Alumina Ceramic Component
- Insulation Resistance: 1012 Ω.cm
- Max Operating Temperature: 1800°C
Technical Parameters:
| Attribute |
Value |
| Form |
Solid |
| Shape |
Components |
| Insulation Resistance |
1012 Ω.cm |
| Color |
White |
| Material |
Alumina Ceramic |
| Thermal Expansion |
7.2×10-6/K |
| Dielectric Strength |
20 KV/mm |
| Hardness |
9.0 Mohs |
| Compressive Strength |
1000-2000 MPa |
| Flexural Strength |
200-400 MPa |
Applications:
Alumina Ceramic Components, produced by Antaeus and with model number A-036, are widely used in various application scenarios due to their excellent properties. Alumina, a type of ceramic materials, is made of alumina powder and has an origin from China. It possesses a compressive strength ranging from 1000 to 2000 MPa, a thermal conductivity of 20-30 W/m.K, a hardness of 9.0 Mohs, a dielectric constant of 9.6, and a density of 3.6-3.9 g/cm3. Such properties make alumina ceramic components an ideal choice for a wide range of applications, including alumina ceramic plate, alumina ceramic case, alumina ceramic pad, and alumina ceramic tube.
Alumina ceramic plate is widely used in the production of bearing components and precision components due to its compressive strength, hardness, and stability. Alumina ceramic case is primarily used in electronic components because of its excellent thermal conductivity and dielectric properties. Alumina ceramic pad is used to cushion and damp shocks in a variety of industries, from automotive to aerospace. And alumina ceramic tube is used to contain and transport liquids and gases in a variety of industries, from chemical to medical.
In conclusion, alumina ceramic components produced by Antaeus with model number A-036 are highly recommended for their superior properties and wide range of applications. They can be used in various scenarios and industries, including bearing components production, electronic components, automotive, aerospace, chemical, and medical.
Customization:
We specialize in custom Alumina Ceramic Components. Our Alumina Ceramic Pad and Alumina Ceramic Slice are of the highest quality, and our components are available in a variety of shapes, sizes, and colors.
